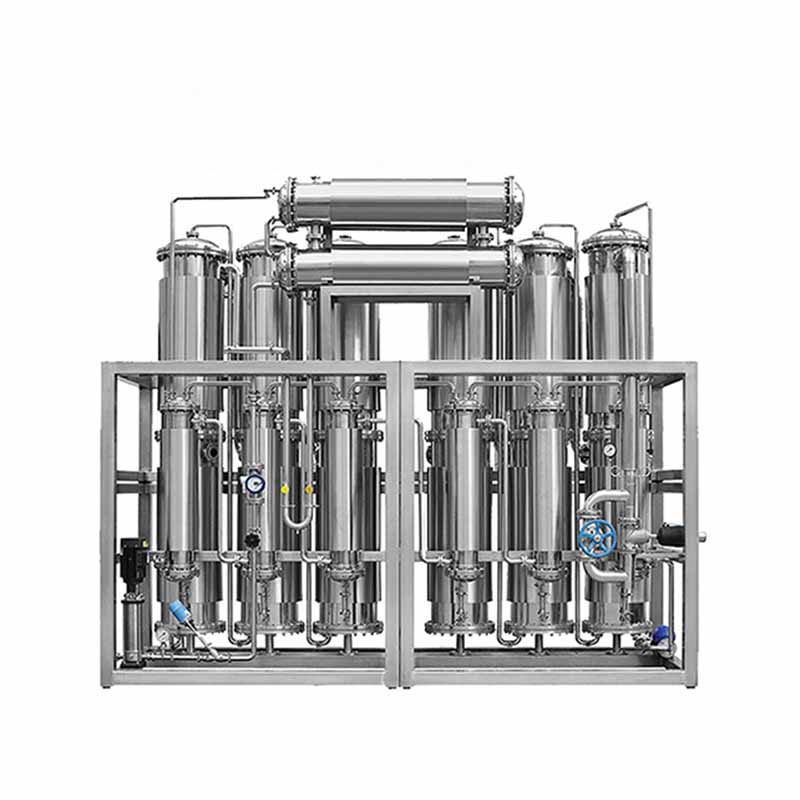

LD Multi-effect Distilled Water Machine

Application

The distilled water produced from our distilled water machines is widely used. In addition to preparing injections and infusions in pharmaceutical industry, it can also be used to clean and sterilize sterile instruments, prepare raw materials and standard samples used in chemical laboratories, clean electronic components and culture improved varieties in agricultural production, etc.
The quality of the distilled water from theres machines is guaranteed in conformity with the requirements for Chinese Pharmacopoeia. On the promise that the electrical conductivity of feeding water is not more than 5μ s/cm, that of distilled water is less than 1μ s/m, Technical data of varied distilled water machines of our factory are as follows.

Description

The distilled water machines of our factory are multi-effect distilled water machines with vapor-heating method. Through scientific calculation, the quantity of heat is utilized many times circularly, so they have high thermal efficiency. Compared with old type, single-effect distilled water equipment, the multi-effect distilled water machines can save more than two thirds of energy. They are presently the pioneer and the best energy saving distilled water equipment in China. The distilled water produced from there machines is of stable quality, high purity and in conformity with the Chinese pharmacopoeia. It can be used as injection water.
The multi-effect distilled water machines have following models according to their capacity.
LD200-3, LD500-4, LD1000-4, LD2000-5, LD3000-6 and so on.

Technical Parameter

LD200-3 Multi-effect Distilled Water Machine

Vapor Pressure (Mpa)	0.3	0.4	0.5	0.6	0.7	0.8
Capacity (kg/h)	200	255	305	355	410	440
Vapor Consumption (kg/h)	85	110	135	160	185	205
Consumption of Feeding Water (kg/h 15℃)	225	285	340	400	455	490
Consumption of Cooling water(kg/h 15℃)	260	340	415	195	580	630
Overall Dimensions and Weight	(L*W*H) mm	(L*W*H) mm	(L*W*H) mm	Weight (kg)	Weight (kg)	Weight (kg)
Dimension of Chief Motor (mm)	1300*900*2480	1300*900*2480	1300*900*2480	500	500	500
Dimension of Feeding Water Reservoir (mm)	950*640*805	950*640*805	950*640*805	91	91	91
Dimension of Cooling Water Reservoir (mm)	950*640*805	950*640*805	950*640*805	86	86	86

LD500-4 Multi-Effect Distilled Water Machine

Vapor Pressure (Mpa)	0.3	0.4	0.5	0.6	0.7	0.8
Capacity (kg/h)	510	665	765	850	925	1000
Vapor Consumption (kg/h)	160	208	247	293	330	370
Consumption of Feeding Water (kg/h 15℃)	585	765	880	980	1065	1150
Consumption of Cooling water	425	535	646	818	937	1081
Overall Dimensions and Weight	L*W*H	L*W*H	L*W*H	Weight	Weight	Weight
Dimension of Chief Motor (mm)	1495*900*3280	1495*900*3280	1495*900*3280	950	950	950
Dimension of Feeding Water Reservoir (mm)	950*640*805	950*640*805	950*640*805	91	91	91
Dimension of Cooling Water Reservoir (mm)	950*640*805	950*640*805	950*640*805	96	96	96

LD1000-4 Multi-Effect Distilled Machine

Vapor Pressure (Mpa)	0.3	0.4	0.5	0.6	0.7	0.8
Capacity (kg/h)	1000	1270	1530	1785	2040	2195
Vapor Consumption (kg/h)	325	420	510	605	695	755
Consumption of Feeding Water (kg/h 15℃)	1120	1425	1710	1995	2285	2460
Consumption of Cooling water(kg/h 15℃)	645	850	1050	1255	1465	1570
Overall Dimensions and Weight	L*W*H	L*W*H	L*W*H	Weight	Weight	Weight
Dimension of Chief Motor (mm)	2260*1060*4105	2260*1060*4105	2260*1060*4105	2060	2060	2060
Dimension of Feeding Water Reservoir (mm)	1150*720*1130	1150*720*1130	1150*720*1130	100	100	100
Dimension of Cooling Water Reservoir (mm)	1150*720*1130	1150*720*1130	1150*720*1130	90	90	90

LD2000-5 Multi-effect Distilled Water Machine

Vapor Pressure (Mpa)	0.3	0.4	0.5	0.6	0.7	0.8
Capacity (kg/h)	2000	2540	3060	3560	4040	4540
Vapor Consumption (kg/h)	510	659	805	949	1090	1238
Consumption of Feeding Water (kg/h 15℃)	2210	2870	3381	3934	4464	5017
Consumption of Cooling water(kg/h 15℃)	687	918	1145	1369	1588	1817
Overall Dimensions and Weight	(L*W*H) mm	(L*W*H) mm	(L*W*H) mm	Weight (kg)	Weight (kg)	Weight (kg)
Dimension of Chief Motor (mm)	3545*1200*4360	3545*1200*4360	3545*1200*4360	4500	4500	4500
Dimension of Feeding Water Reservoir (mm)	950*640*1030	950*640*1030	950*640*1030	150	150	150
Dimension of Cooling Water Reservoir (mm)	950*640*888	950*640*888	950*640*888	100	100	100

LD3000-6 Multi-effect Distilled Water Machine

Vapor Pressure (Mpa)	0.3	0.4	0.5	0.6	0.7	0.8
Capacity (kg/h)	3000	3800	4600	5340	6000	6800
Vapor Consumption (kg/h)	685	810	980	1200	1370	1560
Consumption of Feeding Water (kg/h 15℃)	3315	4210	5050	5900	6690	7520
Consumption of Cooling water(kg/h 15℃)	940	1300	1680	1980	2300	2700
Overall Dimensions and Weight	(L*W*H) mm	(L*W*H) mm	(L*W*H) mm	Weight (kg)	Weight (kg)	Weight (kg)
Dimension of Chief Motor (mm)	4749*1250*4735	4749*1250*4735	4749*1250*4735	5700	5700	5700
Dimension of Feeding Water Reservoir (mm)	1050*785*900	1050*785*900	1050*785*900	120	120	120
Dimension of Cooling Water Reservoir (mm)	1050*785*900	1050*785*900	1050*785*900	120	120	120
